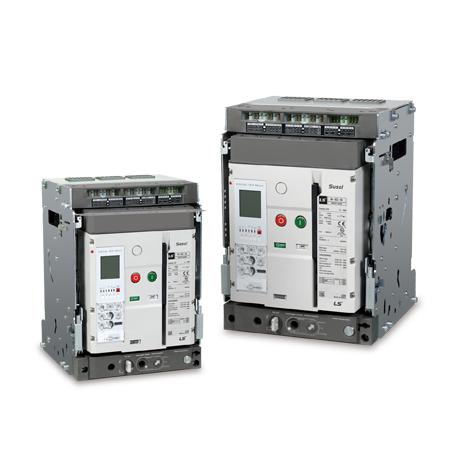

Susol Compact Air Circuit Breaker

The Susol Compact ACB series makes another evolution in size and performance for low voltage circuit breakers by providing a reduction of size and weight of the switchgears. Thanks to the reduced size by 55%, It is easy to handle the breaker as well as reducing the space and raw materials in the switchgear fabrication.

Product Overview

Up to 1600A, Susol Compact ACB provides a more compact frame compared to the Susol & Metasl products. It provides Cat.A, up to 1000A and a breaking capacity of 150kA/415Vac to provide a more powerful solution in the LV grid.

Benefits

  • Reduction of size and weight of switchgears
    • Easy transportation and handling
    • Reduce of raw material usage and installation space
  • Rating Plug application : Easy to change rated current without CT replacement
  • Cat.A up to 1000A, 150kA/415Vac for LV grid

Main specification

  • Ratings : up to 1600A , Cat.A up to 1000A
  • Icu=Ics up to 50kA/690Vac , Cat.A 150kA/415Vac
  • Rated short time current(Icw) : 50kA/1s (Cat.B)
  • Standards : IEC 60947-2 for ACB, IEC 60947-3 for DSU (without OCR)
